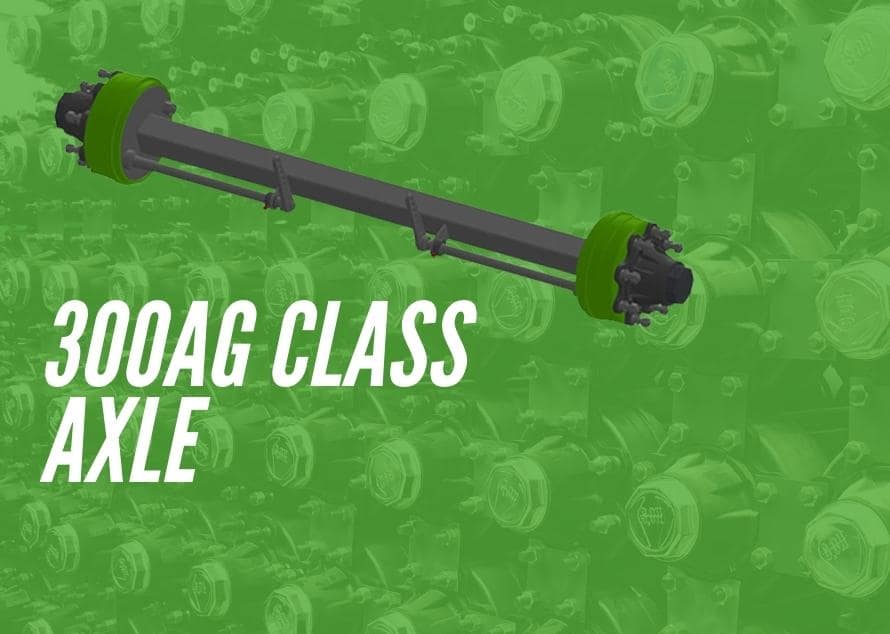

Commonly applied to single axle Slurry Tankers, diet feeders & machines with height restrictions.
The Axle spindles are forged from high purity steel to guarantee superior heat treatment for toughness & rigidity. Commercial S-Cam brake offers high braking efficiency suitable for high speed and many load applications. Wheel studs are 10.9 grade. Extra-wide high-quality taper roller bearings used for ultra-long life. Patented axle design with a precise lean-out angle to minimise tire wear. Designed to exceed all industry standards for load & reliability. Commercial Square beam axles use an innovative cold-forged seamless square beam. This allows an extra 1 tonne capacity per axle.
TUV tested in accordance with EU regulation R13 / 2015/68, UTAC tested in accordance with NF U16-051 / ISO 5696 (selected range).
Manual slack adjusters and Automatic slack adjusters available. Pneumatic & hydraulic actuator mounting bracket options available.
Our super talented Technical team are continuously working on simplifying techniques, providing innovative new products and providing 3D models to help our customers get what they need. Our Technical Hub will provide you with detailed information which will help you design and decide on the products you may need.
While every effort is made for you to make that decision, our Engineers are always on-hand to help.
