Ratchet Jacks, Turnbuckles & Ball End Assemblies

Standard & bespoke Ratchet Jack & Turnbuckle Assemblies

DistagQCS offer a range of standard & bespoke Ratchet Jack & Turnbuckle Assemblies. Types available include;

TURNBUCKLES

TOPLINKS

RATCHET JACKS

RATCHET JACK ASSEMBLIES

BESPOKE TURNBUCKLE

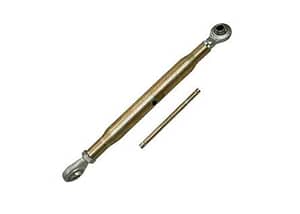

TURNBUCKLES & TOPLINKS

Our range of standard Turnbuckles and Top links is ever expanded and growing to meet customer requirements. Ball Hole sizes supplied typically include,

  • 16mm
  • 19mm
  • 25mm

    Body Lengths of 280mm-1000mm available. Bespoke Powder coated options also available as per the customer’s requirements.

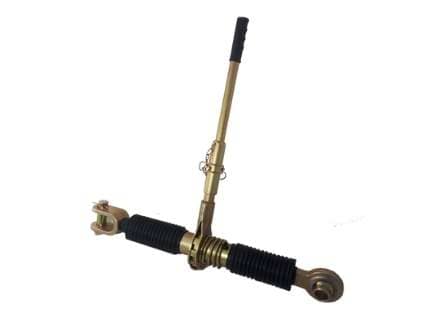

  • SPRUNG HANDLE RATCHET JACK

    Distag QCS supplies several OEM’s in the materials processing industry with our range of Ratchet jacks, Our standard ratchet release mechanisms complete with a removable handle.

    Configurations available for standard ratchet jack assemblies,

  • Clevis End – Ball End (25.5mm hole)
  • Ball End – Ball End (25.5mm hole)
  • Clevis – Clevis Ends

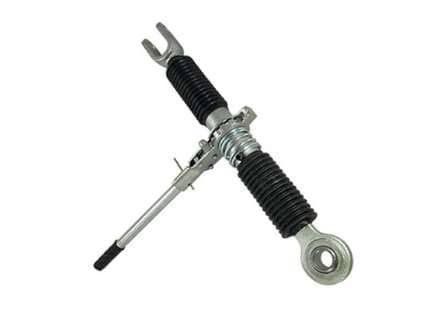

  • RATCHET JACK ASSEMBLY

    In addition to our standard range of ratchet jack assemblies, Distag QCS supplies Ratchet Jack Assembly, Complete with Sprung type handle to release.

    Configurations available for Sprung Type Ratchet Jack assemblies,

  • Clevis End – Ball End (25.5mm hole)
  • Ball End – Ball End (25.5mm hole)

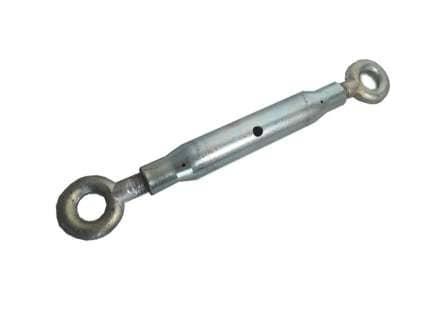

  • TURNBUCKLES

    We also supply Turnbuckles for various applications.Full-bodied turnbuckles available with EYE-EYE ends, Forged body Turnbuckles come with end configurations,

  • Eye-Eye
  • Eye-Hook
  • Hook-Hook
  • Thread sizes options vary from M6 to M22.

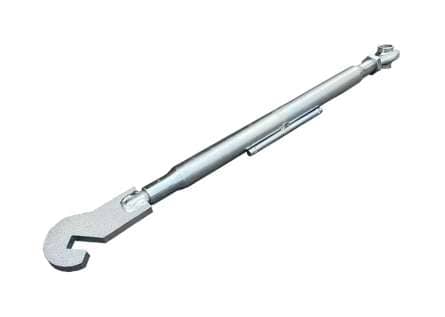

  • BESPOKE TURNBUCKLE

    Our ability to discuss projects with customers and our suppliers and mixing Standardised product with bespoke allowed for this customer to be supplied with a complete assembly for securing trailer ramps.

    By using standardised products the MOQ for this project was kept very low, But also allowing the customer to eliminate unnecessary fabrication.

    The addition of this outer handled eliminated the need for the end customer to weld and paint the existing turnbuckles they were purchasing.

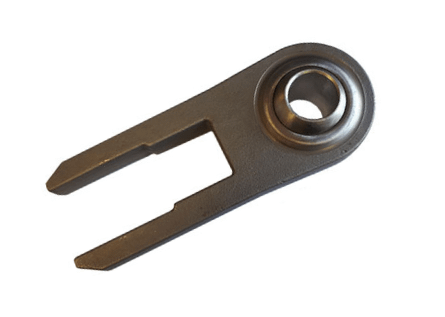

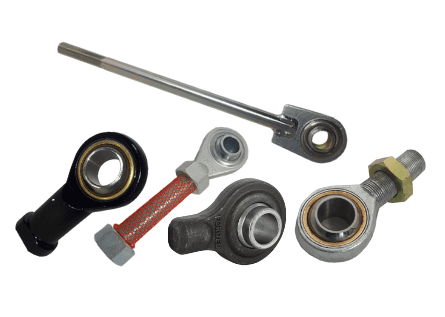

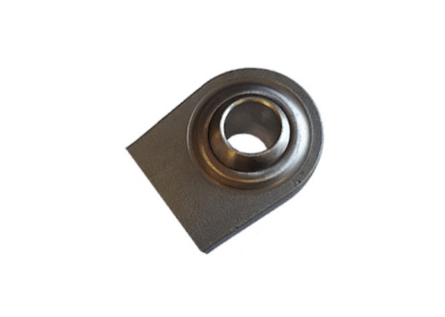

    BALL END ASSEMBLIES

    Distag QCS offer a range of standard & bespoke Ball End Assemblies for various applications. Typical Applicationssupplied include Hydraulic Cylinder’s, Agricultural Equipmentand Materials Processing equipment.

    Standard & bespoke material options are available based oncustomer requirement.

    STANDARD & BESPOKE

    Standard & bespoke material options available based on customer requirement

    VARIOUS DESIGNS

    Various designs options available, with access to robotic welding and various surface treatment options
