HYS-00

SPECIFICATIONS:

CAPACITY: 10,000Kg ~ 16,000Kg per axle
AXLE CENTER OPTIONS: Adjustable to suit any wheel size
AXLE BEAM: SQ150mm

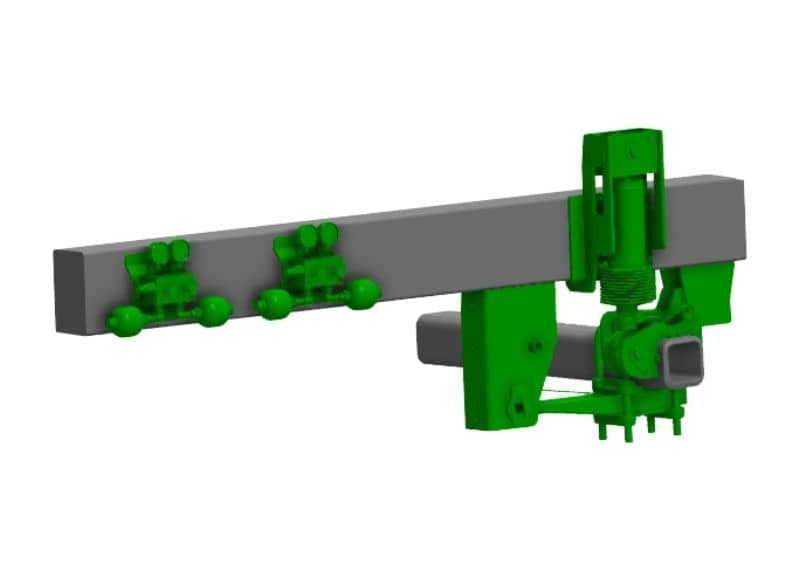

HYS 00 HYDRAULIC SUSPENSION

The hydraulic suspension comes complete with a control system allowing the suspension to be set at a constant ride height regardless of the vehicle loading.
The suspension consistent center of gravity offers increased stability with high loads, traveling at high speed and during cornering. The suspension is supplied in modular kits per axle allowing for setup on vehicles with any axle quantity and wheel spacing.

The under-slung design offers a low running height and combined with the control of the hydraulic system give maximum stability for unstable or high loads traveling at high speeds.

DESIGN:

  • Heavy duty fabricated hangers.
  • Mono-leaf 100mm*50mm Parabolic spring.
  • European produced hydraulic cylinders & valves.



FEATURES & BENEFITS:

  • Maximum stability.
  • Low ride height.
  • Constant centre of Gravity.
  • Closed / self-operating hydraulic system.
  • Low maintenance.
  • Modular system allows for any quantity of axles at any wheel spacing.
  • Optional Load displacement.
  • Large hydraulic cylinder suitable for maximum load capacity.
  • Rubber gators to protect hydraulic cylinders.
