Bespoke Pulleys

Suppling application-specific pulleys to the materials processing industry

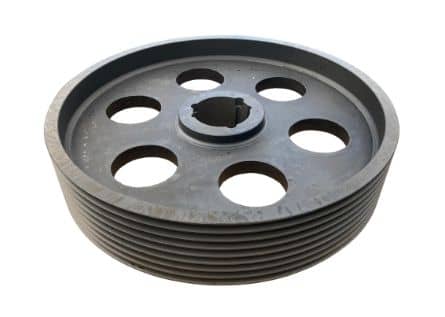

In addition to our standard range of pulleys, DistagQCS supplies application-specific pulleys to the materials processing industry.

A large amount of these pulleys are produced from Ductile iron, the advantages of Ductile iron Pulleys include;

  • A high Shock Load resistance.
  • Greater tensile Strength & Impact Strength Compared to Standard pulleys.
The above advantages make these pulleys ideal for use in large crushers due to their shock load resistance.

Standard POWERDRIVE pulleys are cast from
high-quality GG25 grade fine cast iron, ensuring a long service life due to the extreme resistance to wear.


A Black Phosphate finish improves the grip of the pulley ensuring superior Power Transmission.


OUR POWERDRIVE BESPOKE PULLEYS CAN BE PRODUCED WITH;


OFFSET MOUNTING OPTIONS

SPECIAL TAPER BUSH SIZES

REVERSE TAPER PULLEYS

QD BUSH

PARALLEL BORE

BESPOKE WEBBING

BESPOKE PULLEY

POWERDRIVE bespoke Pulleys are balanced to 40m/sec, with larger pulleys weighing inexcess of 100kgs being dynamically balanced.

Pulley groove specifications conforms to ISO4183, suitable for classical and wedgebelts.

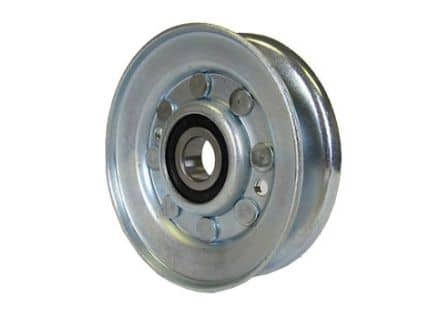

STEEL IDLER PULLEY

Distag QCS supplies a selection of pressed steel idlerpulleys, typically used in the lawn & garden industry.

The advantages of pressed steel pulleys include;

  • A single-row radial ball bearing with an inner ring extends on both sides to provide clearance for abuttingparts and obtain greater shaft support.
  • Contact-type rubber seals assure positive retention forlubricant and full protection against dirt, dust andforeign matter.

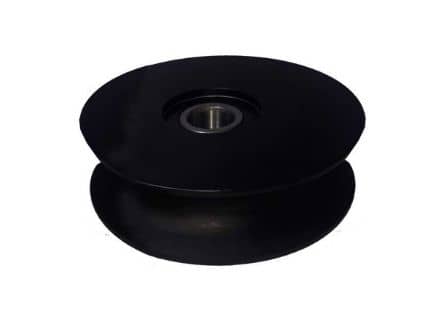

  • NYLON PULLEYS

    Distag QCS supply Nylon pullies - In the example shown bearings have been added to allow for complete assemblies being delivered to the customer.This wheel is used as a rope pulley, the nylon materialis very smooth to not allow for any abrasion of therope and provides adequate strength for theapplication.

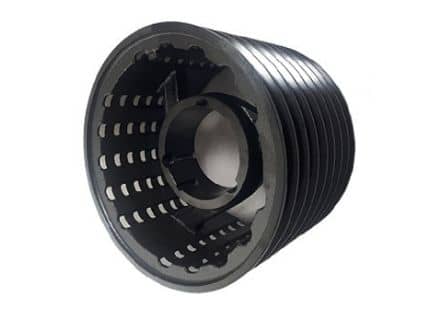

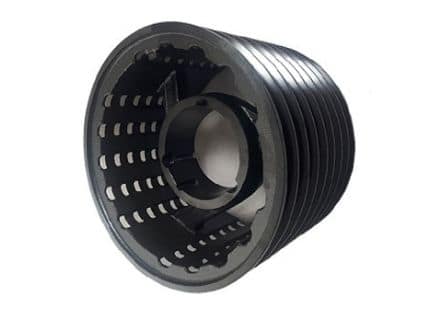

    VENTILATED PULLEY

    For application-specific purposes, Distag QCS supplies Ventilated Pulleys.

    The advantages of these ventilated pulleys;

  • Lightweight design allows for less inertia requiring smaller bearing designs and reduced transport costs.
  • Increased life of V belt due to the ventilated grooves reducing heat build-up.

    Tilted spokes design allows for increased strength compared to other ventilated designs
