Wrapped Wedge

WRAPPED WEDGE V-BELTS

NOW HAVE INCREASED POWER RATINGS

The wedge SPZ, SPA, SPB, SPV, and narrow 3V, 5V, 8V sections, offer improved power handling capacity compared to equivalent Classical belts.



The next generation on from Classical belts, Wedge belts and Narrow have increased power ratings. The increased depth of the belt gives much more surface area of the belt (the sidewalls) in contact with the pulley, thus increasing the coefficient of friction, allowing wedge belts to transmit more power than Classical equivalents. Although a little more expensive than Classical belts, they are gradually becoming the industry standard for high-performance drives, and still represent great value for money.

PIX Wedge section belts exceed the requirements of ISO4183/4184, BS3790, andDIN2215. FRAS belts (fire-resistant/anti-static) are also available.

PIX Wrapped Wedge V-Belts are available in SPZ, SPA, SPB, and SPC sections. PIX Narrow V-Belts available in 3V, 5V and 8V sections. While Narrow belts are fairly rare in the UK, they are more common than wedge in the US.

SPA WRAPPED WEDGE

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 18mm
  • Li to Lp – 45mm
  • Li to La – 63mm



Manufacturing Range from:

  • 576 to 9113 mm



Pitch length (Lp) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 90mm

Belt weight per metre (kg): 0.13

SPB WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 28mm
  • Li to Lp – 60mm
  • Li to La – 88mm



Manufacturing Range from:

  • 1000 to 23580 mm



Pitch length (Lp) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 140mm

Belt weight per metre (kg): 0.22

SPC WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 30mm
  • Li to Lp – 83mm
  • Li to La – 88mm



Manufacturing Range from:

  • 1861 to 2354 mm



Pitch length (Lp) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 224mm

Belt weight per metre (kg): 0.35

SPZ WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 13mm
  • Li to Lp – 37mm
  • Li to La – 50mm



Manufacturing Range from:

  • 19 to 157.5 inches
  • 479 to 4000 mm



Pitch length (Lp) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 63mm

Belt weight per metre (kg): 0.08

3V NARROW BELTS

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 53mm
  • Li to Lp – 92mm
  • Li to La – 145mm



Manufacturing Range from:

  • 90 to 930 inches
  • 2286 to 23622 mm



Nominal length (La) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 500mm

Belt weight per metre (kg): 0.95

5V NARROW BELTS

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 39mm
  • Li to Lp – 61mm
  • Li to La – 100mm



Manufacturing Range from:

  • 57 to 361 inches
  • 1488 to 9169 mm



Nominal length (La) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 250mm

Belt weight per metre (kg): 0.67

8V NARROW BELTS

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 16mm
  • Li to Lp – 22mm
  • Li to La – 28mm



Manufacturing Range from:

  • 14 to 172 inches
  • 356 to 4369 mm



Nominal length (La) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 50mm

Belt weight per metre (kg): 0.057

RELATED SECTIONS
PIX Belts

EXCLUSIVE DISTRIBUTOR

DistagQCS are proud to be the exclusive distributor of PIX V-Belts since 1989. With the experience gained in the UK and Irish market over the past 25 years, DistagQCS and PIX are your #1 partner for belts in the UK and Ireland.
PIX-Drive-Design

PIX DRIVE DESIGN

Design your drive online using PIX web-based drive design utility. PIX Belt selection tool ALSO AVAILABLE - designed to facilitate easy & accurate selection of Belt solutions for specific applications from a myriad of Belt applications.

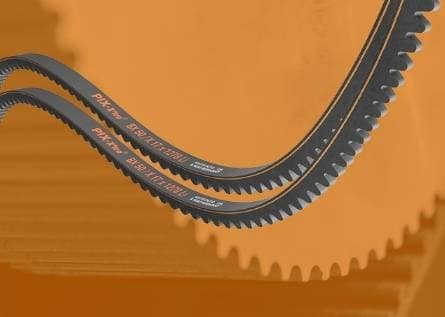

Cogged Classical belts
