WRAPPED CLASSICAL V-BELTS

WRAPPED CLASSICAL MULTI-APPLICATION V-BELTS SETTING THE STANDARD FOR INDUSTRY

Classical wrapped belts – the original ‘work-horse’, giving a superior performance at an affordable price point. PIX produce premium quality wrapped belts in Classical sections which exceed the requirements of ISO4183/4184, BS3790, and DIN2215. FRAS belts (fire-resistant/anti-static) also stocked – see FRAS under Special Construction.

PIX X’ set Wrapped Classical V-Belts are available in Z, A, B, 20, C, 25, D & E.

Top width to height ratio is 1.6:1
Maximum recommended belt speed is 30 m/sec

Permissible flex rate ‘f’ = 80 per sec.

Z WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 16mm
  • Li to Lp – 22mm
  • Li to La – 28mm



Manufacturing Range from:

  • 14 to 172 inches
  • 356 to 4369 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 50mm

Belt weight per metre (kg): 0.057

A WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 14mm
  • Li to Lp – 36mm
  • Li to La – 50mm



Manufacturing Range from:

  • 16 to 357 inches
  • 406 to 9068 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 71mm

Belt weight per metre (kg): 0.12

B WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 26mm
  • Li to Lp – 43mm
  • Li to La – 69mm



Manufacturing Range from:

  • 16 to 926 inches
  • 406 to 23520 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 112mm

Belt weight per metre (kg): 0.19

C WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 32mm
  • Li to Lp – 56mm
  • Li to La – 88mm



Manufacturing Range from:

  • 31 to 927 inches
  • 787 to 23546 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 180mm

Belt weight per metre (kg): 0.32

D WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 40mm
  • Li to Lp – 79mm
  • Li to La – 119mm



Manufacturing Range from:

  • 44.5 to 928 inches
  • 1130 to 23571 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 355mm

Belt weight per metre (kg): 0.67

E WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 53mm
  • Li to Lp – 92mm
  • Li to La – 145mm



Manufacturing Range from:

  • 90 to 930 inches
  • 2286 to 23622 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 500mm

Belt weight per metre (kg): 0.95

25 WRAPPED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 39mm
  • Li to Lp – 61mm
  • Li to La – 100mm



Manufacturing Range from:

  • 57 to 361 inches
  • 1488 to 9169 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 250mm

Belt weight per metre (kg): 0.67

RELATED SECTIONS
PIX Belts

EXCLUSIVE DISTRIBUTOR

DistagQCS are proud to be the exclusive distributor of PIX V-Belts since 1989. With the experience gained in the UK and Irish market over the past 25 years, DistagQCS and PIX are your #1 partner for belts in the UK and Ireland.
PIX-Drive-Design

PIX DRIVE DESIGN

Design your drive online using PIX web-based drive design utility. PIX Belt selection tool ALSO AVAILABLE - designed to facilitate easy & accurate selection of Belt solutions for specific applications from a myriad of Belt applications.
Wrapped Wedge belts

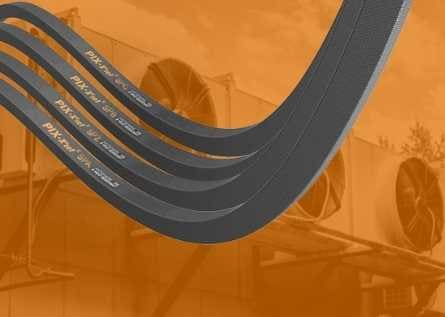

WRAPPED WEDGE BELTS
