COGGED CLASSICAL

Raw Edge cogged Belts ARE V-Belts with moulded teeth on their inner surface.

Raw Edge Cogged (REC) belts offer more flexibility compared to the Wrap construction Belts as the tooth profile allows the accumulation of air pockets into it, which acts as a heat absorber and prevents the increase in temperature of the drive during operation. The ‘Raw Edge’ surface on the side walls of the belt increases the coefficient of friction with the pulley and allow the belt to transmit more power than the wrapped equivalent

The teeth on the REC belts run perpendicular to the belt length, and reduce the bending stress in the belt components. They run cooler, last longer, and are more energy-efficient compared to wrapped construction belts. REC belts can be used with the same pulleys as wrapped construction belts, and are used in a wide array of mechanical machinery, where enhanced power transmission is required.

PIX offer the Classical REC belts in ZX, AX, BX, CX, and DX sections.

In addition to standard construction, Classical REC belts are available to order in Muscle specification for even higher power transmission, and maintenance-free applications.

AX COGGED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 14mm
  • Li to Lp – 36mm
  • Li to La – 50mm



Manufacturing Range from:

  • 21 to 200 inches
  • 550 to 5000 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 63mm

Belt weight per metre (kg): 0.12

BX COGGED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 26mm
  • Li to Lp – 43mm
  • Li to La – 69mm



Manufacturing Range from:

  • 21.5 to 200 inches
  • 550 to 5000 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 90mm

Belt weight per metre (kg): 0.19

CX COGGED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 32mm
  • Li to Lp – 56mm
  • Li to La – 88mm



Manufacturing Range from:

  • 23.5 to 200 inches
  • 600 to 5000 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 140mm

Belt weight per metre (kg): 0.32

ZX COGGED CLASSICAL

SPECIFICATIONS

Belt Length Conversion Factors:

  • Lp to La – 16mm
  • Li to Lp – 22mm
  • Li to La – 38mm



Manufacturing Range from:

  • 21.5 to 200 inches
  • 550 to 5000 mm



Nominal Length (How the belt reference is arrived at)

Inside length (Li) in inches (sizes less than 100″ prefixed with zero)

Other sizes available to special order – please speak to our sales team for a quotation.

Recommended minimum pulley diameter: 40mm

Belt weight per metre (kg): 0.05

RELATED SECTIONS
PIX & POWERDRIVE Overview

PIX & POWERDRIVE OVERVIEW

World-leading belts range, POWERDRIVE best-in-class brand. Agricultural machinery, lawn & garden, HVAC & building services, automotive, as well as general industry and automation. Now widely recognised as one of Europe’s leading brands of power transmission components.
PIX-Drive-Design

PIX DRIVE DESIGN

Design your drive online using PIX web-based drive design utility. PIX Belt selection tool ALSO AVAILABLE - designed to facilitate easy & accurate selection of Belt solutions for specific applications from a myriad of Belt applications.
Cogged Wedge BELTS

COGGED WEDGE BELTS

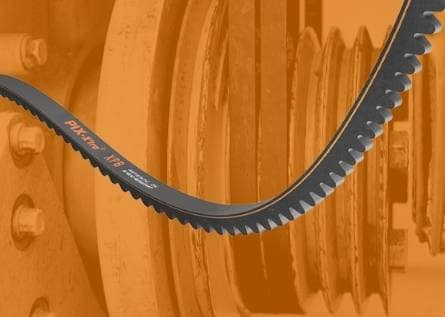

PIX offers a wide range of toothed Belts of various profiles, such as; ZX, AX, BX, CX, DX; Classical sections. XPZ, XPA, XPB, XPC, Wedge Belt sections. 3VX, 5VX, 8VX; Narrow sections and 2LX, 3LX, 4LX, 5LX; Light-duty sections.
